To order please send an e-mail CANduinoShop ( at ) gmail.com .
Actually we haven’t shop partner so we can’t sell kits. Authors of this project are regular aerospace engineers and they can’t spend time for it. For solve this problem we prepared “bill of material” with links to electronic components shops.
If you are interested to be official CANduino seller please send an e-mail at
canduinoeu ( you know what ) gmail.com .
———————————————
If you plan to build CANduino, all elements you can buy in hobby/electronic shops and building markets. Proposed links are for demonstration only. Watch tutorial „Assembling” for betted understanding.
List of CANduino bill of materials:

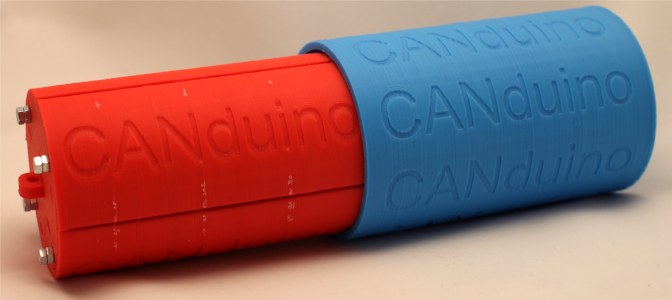

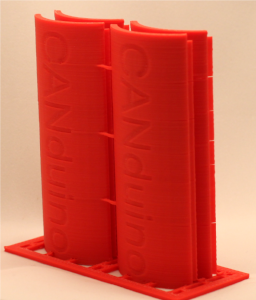

- 3D printed CANduino structure.
Quantity: 1
Description: How to print, check „3D models” overlap.
Link: none.
- Screws to a power switch.
Quantity: 2

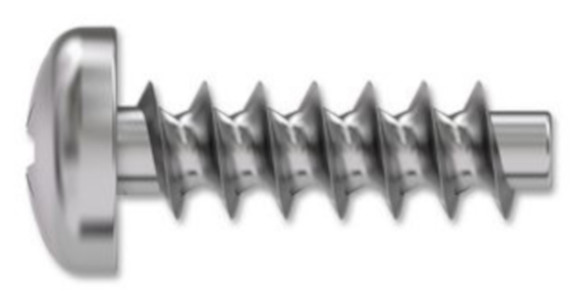

Description: Diameter 3 mm length 6 mm
Link: http://uk.farnell.com/tr-fastenings/3-06prst30tc1d/screw-pozi-thread-forming-m3-x/dp/2474936

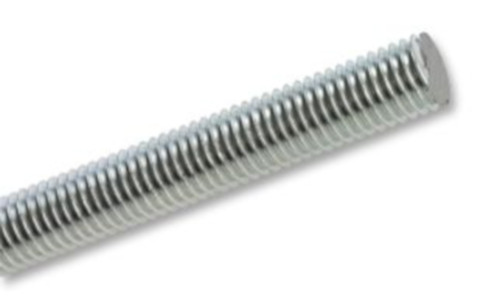

- Screws to a structure
Quantity: 4
Description: Threaded shaft M3 cut to length 115 mm (cut typically from 1 m threaded shaft). Check Tutorial „Assembling”.
Link: http://uk.farnell.com/duratool/d00810/studding-steel-m3/dp/2444324
- Nuts
Quantity: 12

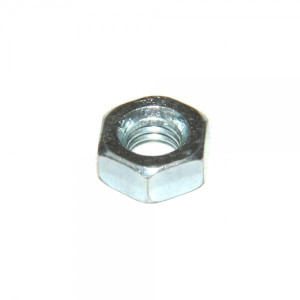

Description: Metal nuts M3
Link: http://uk.farnell.com/duratool/m3-hfst-z100/nut-full-steel-bzp-m3-pk100/dp/1419447
- Pin plastic spacer
Quantity: 4
Description: FIX&FASTEN FIX-LCF-3 PCB distance; polyamide; L:3.2mm; latch/latch; Colour: natural
Link: http://www.tme.eu/gb/details/fix-lcf-3/plastic-pegs/fixfasten/
Link2: http://uk.farnell.com/duratool/dtrlcbsm-2-01/pcb-support-3-2mm-pk50/dp/2472772
- Clamps
Quantity: 10

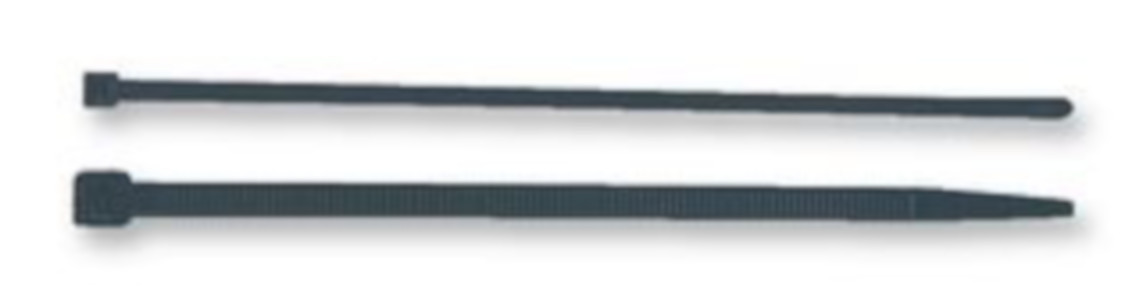

Description: Clamps length 100 mm height 2,5 mm (about)
Link: http://uk.farnell.com/pro-power/cvr100bk/cable-tie-100mm-pa66-pk100-black/dp/1416050
- Arduino computer
Quantity: 1
Description:
CANduino is compatible with Arduino UNO board, Arduino MEGA board and Arduino DUE board, but because in tutorial and examples we use DUE version only, I strongly recommended this version. It is fastest, has a lot of memory, and use 3.3 V bus necessary to new sensors. You can use “clone” less expensive version.
Link: http://uk.farnell.com/arduino-org/a000062/arduino-due-dev-board/dp/2250861

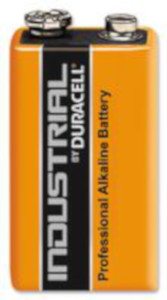

- Battery
Quantity: 1
Description: For test you can use classic 9V battery 6F22 6LR61. For flight you need to use Lithium version of it because Lithium version has up to 4x more capacity and can work in low temperature.
Link: http://pl.farnell.com/duracell/5000394082991/battery-alkaline-industrial-9v/dp/2433048
- Battery connector
Quantity: 1

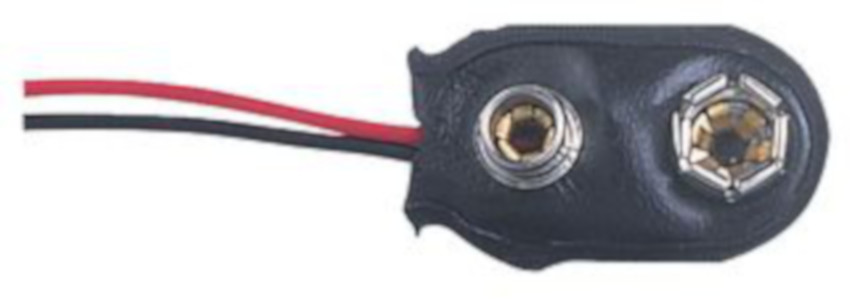

Description: Connector for 9V battery 6F22 6LR61.
Link: http://uk.farnell.com/multicomp/440005p/battery-connector-pp3-type-1-150mm/dp/1183123

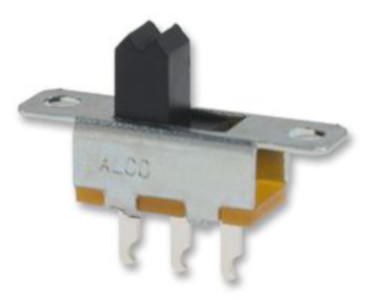

- Power switch
Quantity:
Description: Slide Switch; SPDT; 0,5A/24VDC; ON-ON MFS 121 D (15 mm between mounting holes). You can use any small low cost swith.
Link: http://uk.farnell.com/te-connectivity/sls12104/switch-slide-spdt/dp/1813681
- Cable set M-M
Quantity: 20 (single cables)

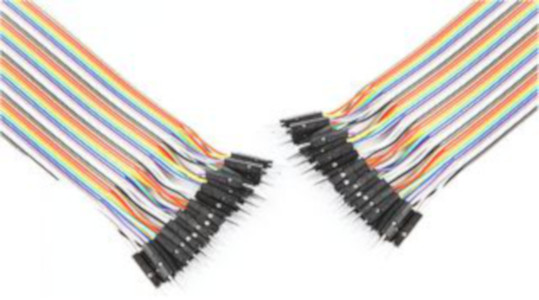

Description: JUMPER RIBBON CABLE, M-M
Link: http://uk.farnell.com/pro-signal/psg-jrbn40-mm/jumper-ribbon-cable-m-m-dev-eval/dp/2452753
- Cable set M-F
Quantity: 20 (single cables)

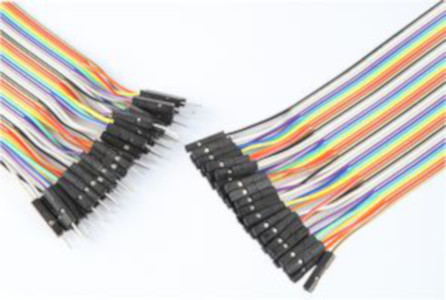

Description: JUMPER RIBBON CABLE, M-F
Link: http://uk.farnell.com/pro-signal/psg-jrbn40-mf/jumper-ribbon-cable-m-f-dev-eval/dp/2452752

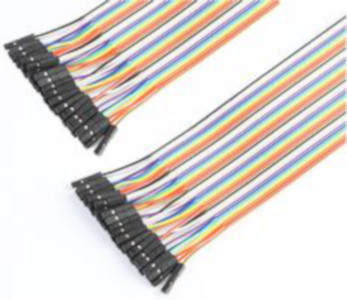

- Cable set F-F
Quantity: 20 (single cables)
Description: JUMPER RIBBON CABLE, F-F
Link: http://uk.farnell.com/pro-signal/psg-jrbn40-ff/jumper-ribbon-cable-f-f-dev-eval/dp/2452751

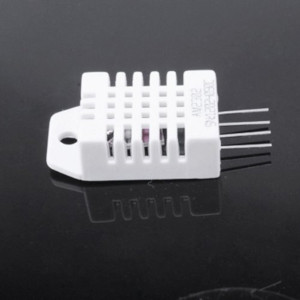

- Temperature and humidity sensor DHT22
Quantity: 1
Description: DHT22/AM2302 Digital Temperature And Humidity Measurement Sensor
Link: https://www.amazon.com/Vktech-Appliance-Temperature-Humidity-Measurement/dp/B00O8RIYYU
- GY-80 multi sensor (gyroscope, an accelerometer, a magnetometer, a barometer & temperature)
Quantity: 1

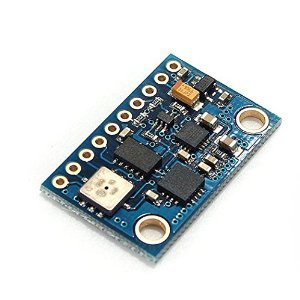

Description: Multi sensor, 9-Axis Attitude Indicator L3G4200D ADXL345 HMC5883L BMP085 Module Arduino

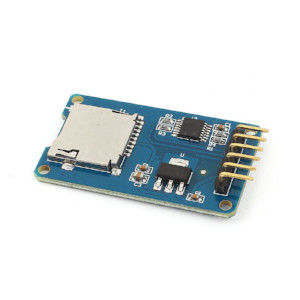

- Micro SD connector.
Quantity: 1
Description: Micro SD Storage Board TF Card Shield Module SPI Interface For Arduino

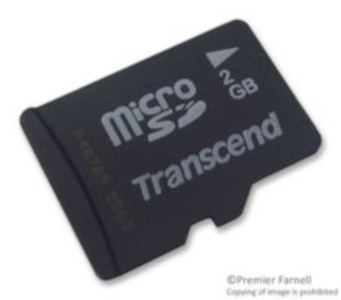

- Micro SD card
Quantity: 1
Description: Flash Memory Card, MicroSDHC, Class 10, 8 GB. Data volume is not important.
Link: http://uk.farnell.com/transcend/ts8gusdhc10/card-micro-sdhc-8gb-class-10/dp/2290244
- TRX – CC1000PP
Quantity: 1

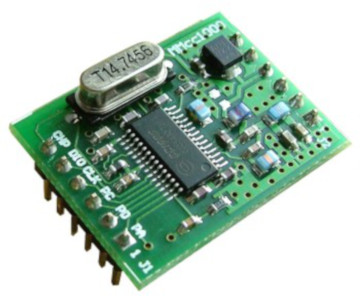

Description: Minimodule with transceiver CC1000. This is prototype board for CC1000 Chipcon chip transceiver. Circuit CC1000 (Chipcon) works with 14,7456MHz resonator. This module is compatible with module CC1000PP produced by Chipcon. The module works in the free-access ISM 433MHz frequency band.
Link: http://www.store.propox.com/index.php?p897,mmcc1000-433mhz

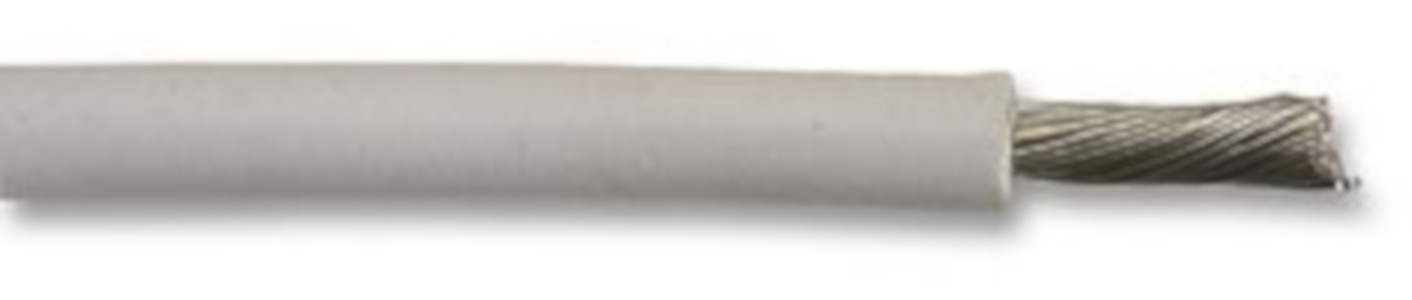

- Antenna TRX
Quantity: 1
Description: 17 cm of any simple mounting cable which you solder to CC1000PP transceiver module. Using high quality cable (e.g. in teflon shield) give you warranty that it survive test and flight but it is not necessary.
Link: http://uk.farnell.com/alpha-wire/5856-wh005/wire-ul1213-20awg-white-30-5m/dp/1199128

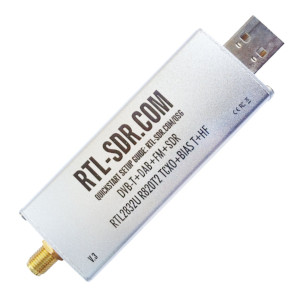

- Software Defined Radio Receiver
Quantity: 1
Description: SDR & DVB-T USB Stick (RTL2832 + R820T2). You can buy less expensive USB TV receiver with R820T2 chip, or (I strongly preferred) use updated version of it from rlt-sdr.com service. Updated version is more stable (use special high quality generator – 1ppm TCXO), has metal shield and use SDM connector. Buy it with antenna setup.
Link: http://www.rtl-sdr.com/buy-rtl-sdr-dvb-t-dongles/
Optional components:

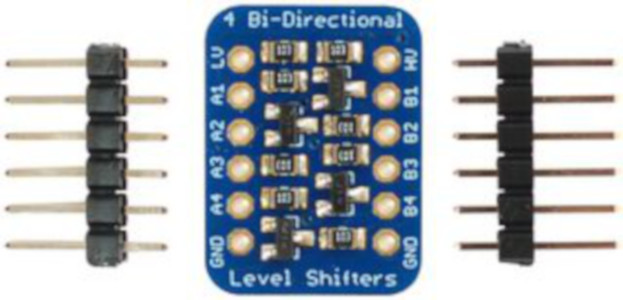

- Voltage logic converter 5V-3.3V (for Arduino UNO/MEGA boards only)
Quantity: 1
Description: LOGIC LEVEL CONVERTER. You need it when you use 5V board (Arduino UNO/MEGA) and 3.3V sensors or transceivers as CC1000. Normally we DO NOT USE it witch Arduino DUE board.
Link: http://uk.farnell.com/adafruit-industries/757/logic-level-converter-4ch-arm/dp/2301651

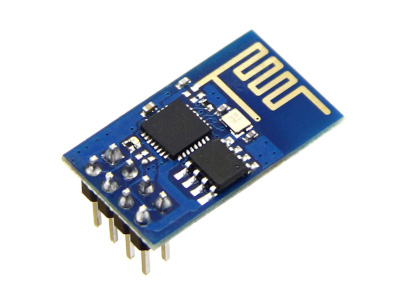

- WiFi module ESP8266 (for advanced users)
Quantity: 1
Description: ESP8266 Serial WIFI Module. This module is WiFi card for Arduino board. Normally we DO NOT USE it in regular project.
———————————————
Regards
Marcin Stolarski
